BIGPRINT_equipments

PRINTING DEVICES

Roll-to-Roll printers - UV ink

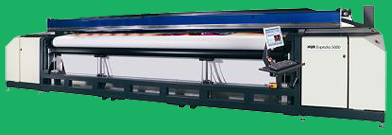

NUR Expedio™ 5000

Extra large format - UV ink - digital printer
Printing width: 5,00 m
UV ink – due to UV light hardening, environmentally friendly; harder ink surface (no-scratch), 5 years outdoor warranty against fading
8 colours – reach in details, accurate, saturate, real natural, continuous colour transition
Piezo DOD inkjet technology with UV curable ink
16 piezo DOD printing heads
720 dpi – foto quality
double side printing
150 m²/h – industrial quantity, studio quality
Weight: 6,500 kg
Length: 8.30m Depth: 1.85m Height: 2.0m
Units in use: 2 pieces

Roll-to-Roll printers - Solvent ink

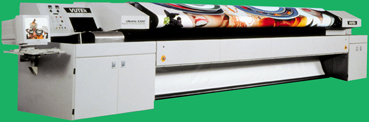

VUTEk UltraVu™ 5300

Extra large format - solvent ink - digital printer
Printing width: 5,00 m
Solvent based ink – 3 years outdoor warranty against fading
4 colours – CMYK
Piezo DOD inkjet technology with solvent ink, the ink is drying due to the solvent evaporation
8 piezo DOD printing heads
300 dpi
double side printing
110 m²/h
Weight: 2,500 kg
Length: 8.63m Depth: 1.25m Height: 1.58m
Units in use: 1 piece

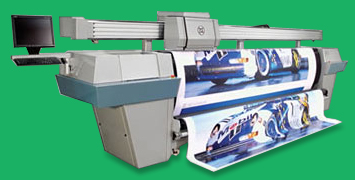

Jeti 3324 RTR

Extra large format - solvent ink - digital printer
Printing width: 3,20 m
Solvent based ink – 3 years outdoor warranty against fading
4 colours, as well as 6 colours – 4 CMYK+2 CM light
Piezo DOD inkjet technology with solvent ink, the ink is drying due to the solvent evaporation
24 piezo DOD printing heads
600 dpi
double side printing
120 m²/h
Weight: 1,814 kg
Length: 5.79m Depth: 0.91m Height: 1.70m
Units in use: 2 pieces

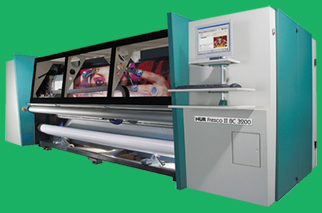

NUR Fresco II 8C 3200

Extra large format - solvent ink - digital printer
Printing width: 3,20 m
Solvent based ink – 3 years outdoor warranty against fading
8 colours – 4 CMYK+4CMYK light
Piezo DOD inkjet technology with solvent ink, the ink is drying due to the solvent evaporation
32 piezo DOD printing heads
370 dpi
double side printing
120 m²/h
Weight: 5,000 kg
Length: 5.45m Depth: 2.31m Height: 1.79m
Units in use: 1 piece

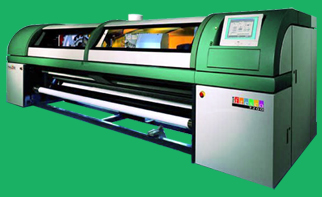

NUR Fresco 3200

Extra large format - solvent ink - digital printer
Printing width: 3,20 m
Solvent based ink – 3 years outdoor warranty against fading
4 colours – 4 CMYK
Piezo DOD inkjet technology with solvent ink, the ink is drying due to the solvent evaporation
16 piezo DOD printing heads
360 dpi
65 m²/h
Weight: 4,500 kg
Length: 5.45m Depth: 2.31m Height: 1.79m
Units in use: 1 piece

NUR Fresco 1800

Extra large format - solvent ink - digital printer
Printing width: 1,80 m
Solvent based ink – 3 years outdoor warranty against fading
4 colours – 4 CMYK
Piezo DOD inkjet technology with solvent ink, the ink is drying due to the solvent evaporation
16 piezo DOD printing heads
360 dpi
45 m²/h
Weight: 2,600 kg
Length: 3.80m Depth: 1.80m Height: 1.70m
Units in use: 1 piece

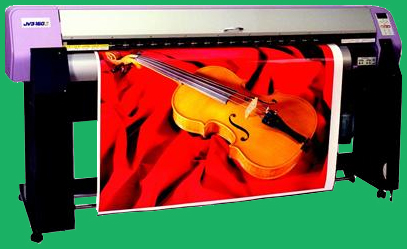

Mimaki JV3-160SP

Large format - eco-solvent ink - digital printer
Printing width: 1,60 m
Eco-solvent based ink – 2 years outdoor warranty against fading
4 colours – 4 CMYK
Piezo DOD inkjet technology with solvent ink, the ink is drying due to the solvent evaporation
4 piezo DOD printing heads
720x720 dpi
12 m²/h
Weight: 175 kg
Length: 2.66m Depth: 1.05m Height: 1.24m
Units in use: 2 pieces

Flatbed printers - UV ink

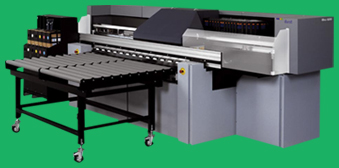

Durst Rho 600

Flatbed printer - UV ink - bigest table area
Substrate max. width: 205 cm (standard sheet size)
Substrate max. lenghth: no limit (standard sheet length - 300 cm)
Substrate max. thikness: 70 mm
Substrate min. size: DIN-A3 - 29,7 x 42 cm
Substrate max. weight: 70 kg
Ink type: UV pigment based-environmentally friendly
Ink tank volume: 10 liter each colour
Font size: either 6 pt., or A-class bar-code
4 colours - CMYK
1+1 colour - White - under-print+over-print; important in case of qualitative graphics printing on transparent or non-white substrates
Printed surface appearance: gloss or matt
Printing heads: Spectra based, Durst Quadro array technology
Resolution: 400/600 dpi – real PHOTO quality
Printing speed: max. 40 m²/hour - heavy-duty
Length: 5.55m Depth: 4.25m Height: 1.75m - professional construction
Weight: 3.400 kg
Units in use: 1 piece

FINISHING DEVICES

Automated digital finishing systems

for signs and display

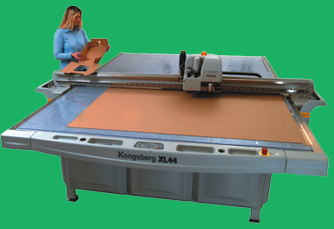

Kongsberg XL 44

The digital cutting (and also routing) machine users, with the help of a complex and complete cutting toolbar, have the opportunity to be executed a qualitative shaping on the entire range of substrates, started from the easy and thin cardboard, through the heaviest triple-wave corrugated board, entirely to the plastic or tree.

The digital cutting machine can be used excellently in the field of short -and middle run production of the pre-printed sheets. The accurate cutting (shape-cutting, outline-cutting, creasing) it possible due to the laser pointer in toolhead, which ensures fast and accurate registration and a perfect cutting outline.

Kongsberg XL flatbed cutting plotters benefits, substrates shaping procedures:

the main benefit is the significant productivity gains due to high-powered servo system and Twin-Drive beam
the wide range of applicable substrates
the highest efficiency due to the excelent cutting speed – max. 50cm/minute
shape-cutting in film, compact cardboard, corrugated board, foam board, leather
outline-shaping in foam blocks (sponge) – 90 mm height
surface cutting in film
routing in plastic, metal, wood
creasing with high presure and rotating creasing wheel in corrugated board, compact board
start position marked with laser pointer

Laminators

GMP graphic master 2100

laminálási technológia: hideg vagy meleg
maximális laminálási szélesség: 210 cm
maximális laminálható anyagvastagság: 25 mm
fűtési rendszer: infra

Welding equipments

LEISTER CH 6060

welding technology: hot air welding
maximum welding temperature: 600 °C
maximum welding speed: 7,5 m/min
welding strip width: 35 mm

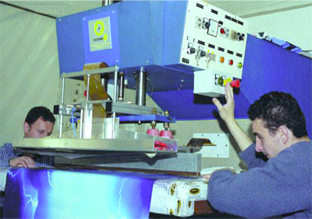

Seletron MF

welding technology: welding with high frequency power impulse
output power: 12 kW
electrode length: 100 cm
electrode width: 20mm
